IMK98 Projector Parameter

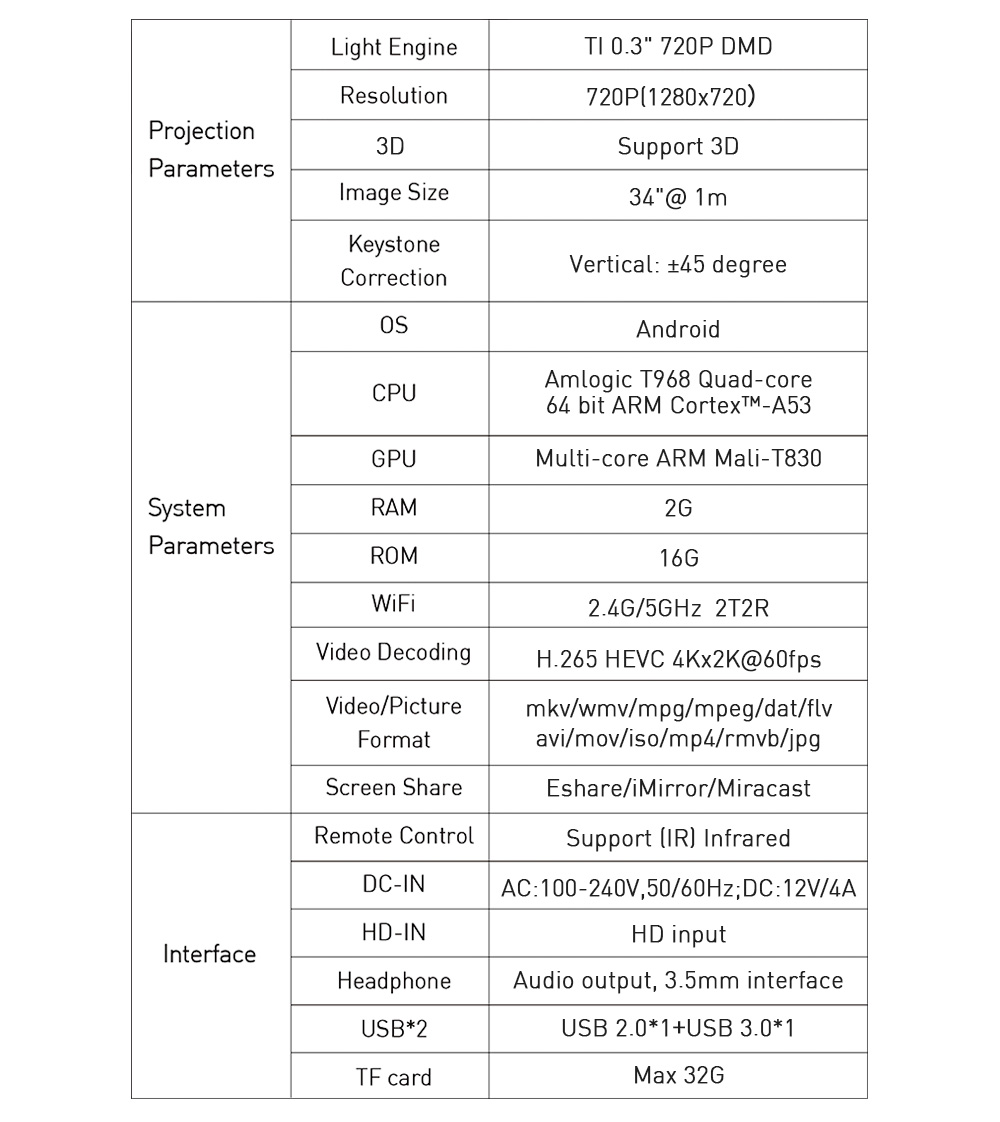

System Parameters
Screen Mirror：Airplay/MiraCast

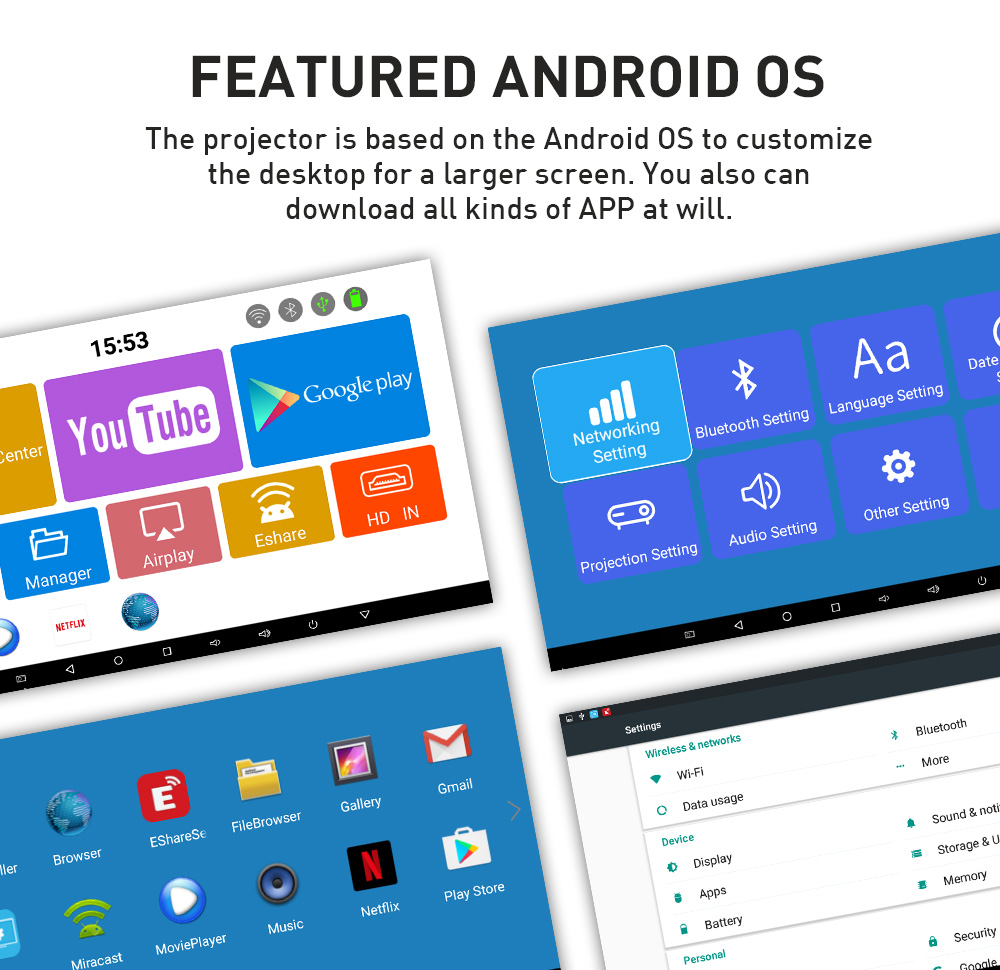

OS：Android 5.1
CPU：T968(Amlogic)
Basic Frequency：Quad core ARM Cortex-A53 CPU up to 1.8GHz (DVFS)
GPU：Multi-core ARM® Mali™-T830
Buffer Memory：2G
Memory：16GB
WIFI：2.4G/5G 802.11a/b/g/n/ac(2T2R)
Bluetooth：BT 4.1
Projection Specification
Panel：DLP(0.3"720P DMD)

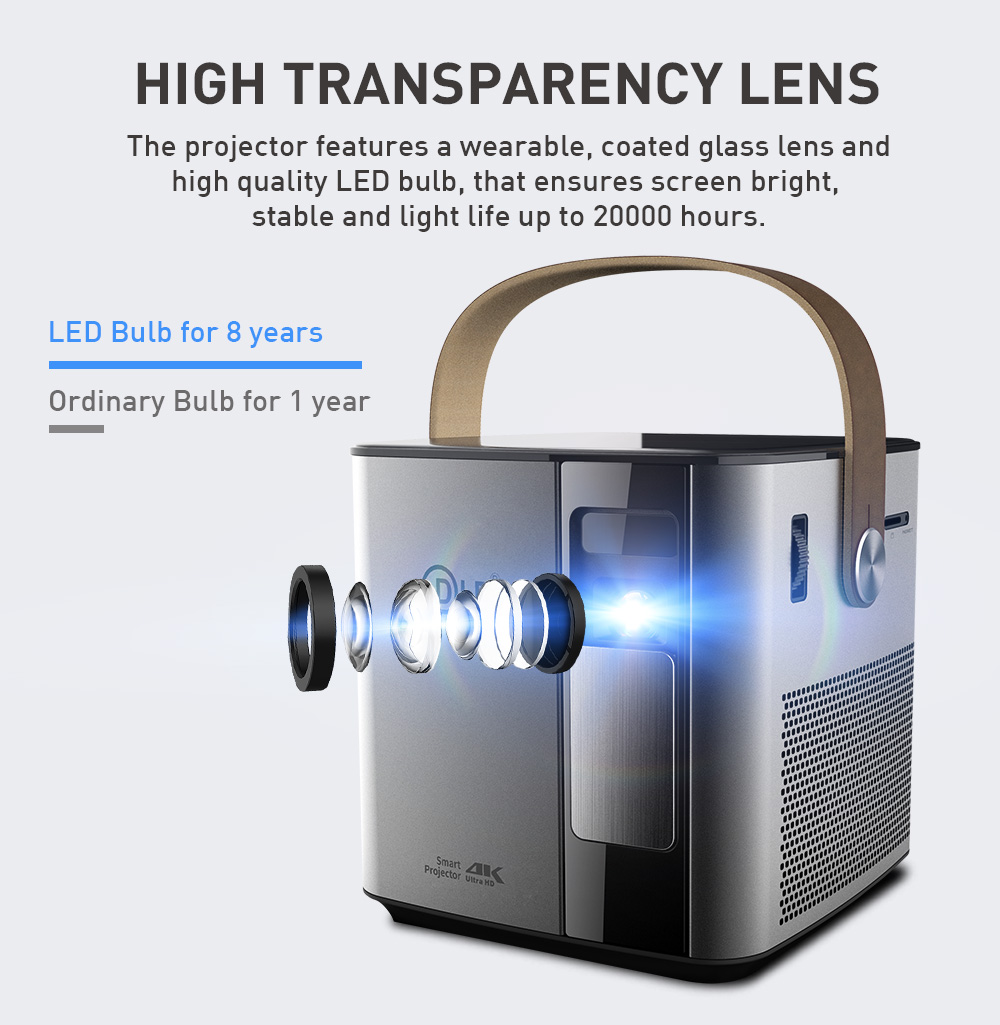

Light source：RGB LED OSRAM Q6
Light Life：Up to 20,000 hours
Lumens：ANSI 180LM
Resolution：720P(1280*720)

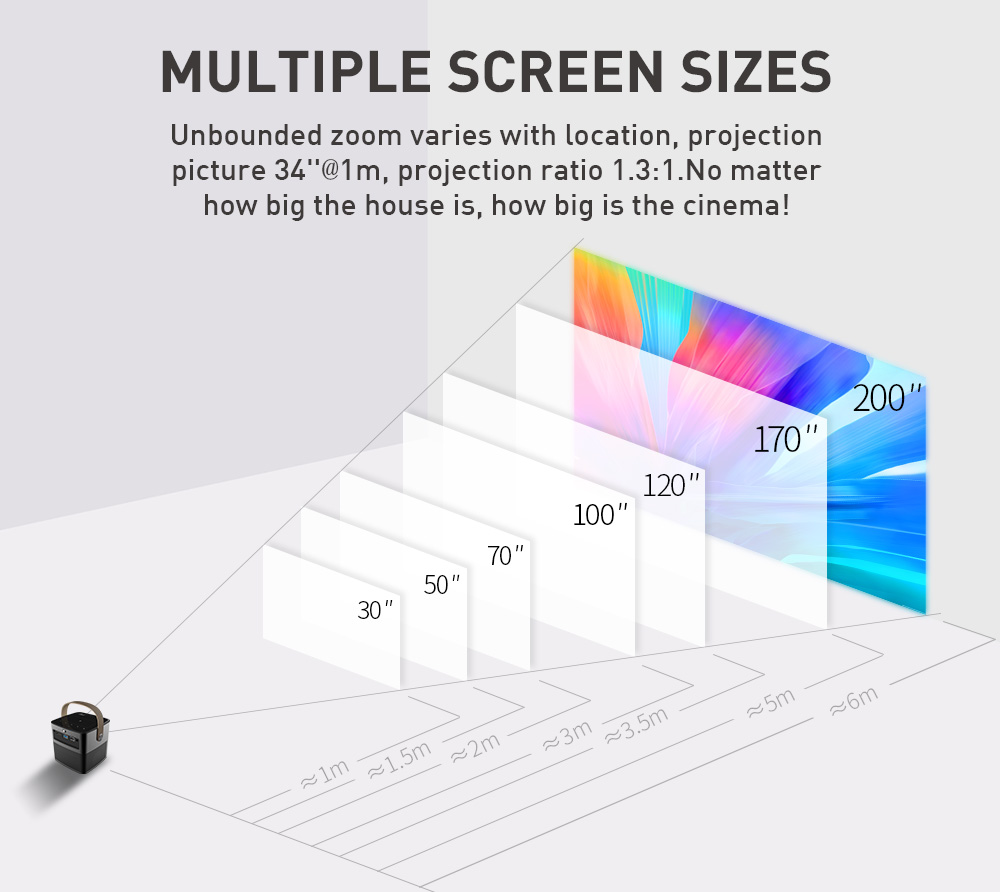

Projection Area：10-300 inch
Contrast(FOFO)：1000:1
Throw Ratio：1.3
Distortion：<1.5％
Luminance Uniformity：90%
Projection Distance:1-8m
Image size:34"@1m
Aspect Ratio:16:10
Projector Character:Interaction
Projection Mode:Front Projection
Focus mode:Manual focus

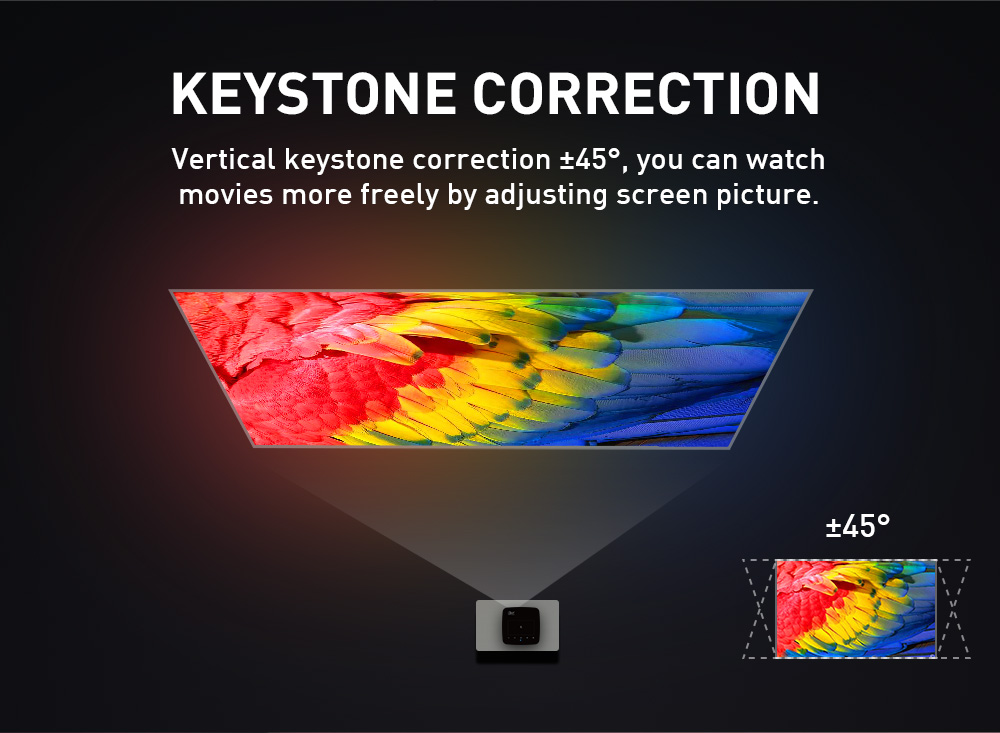

Keystone Correction:Manual, Vertical: ±45 degree
Offset:100%
3D:YES
Basic parameters
Built-in Battery:12000MA
Usage time:work for about 1.5 hours
Video Support:(up to 4K) VP9-10,H.265,H.264,MPEG-4,WMV/VC-1,
MPEG-2,MPEG-1,RealVideo 8/9/10 etc.
Audio Support:MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,
APE,3GP,WAV
Image Support :Supports variety of image formats browsing (jpg, png, bmp etc.）
Extended Storage:Support TF Card and Hard Disk

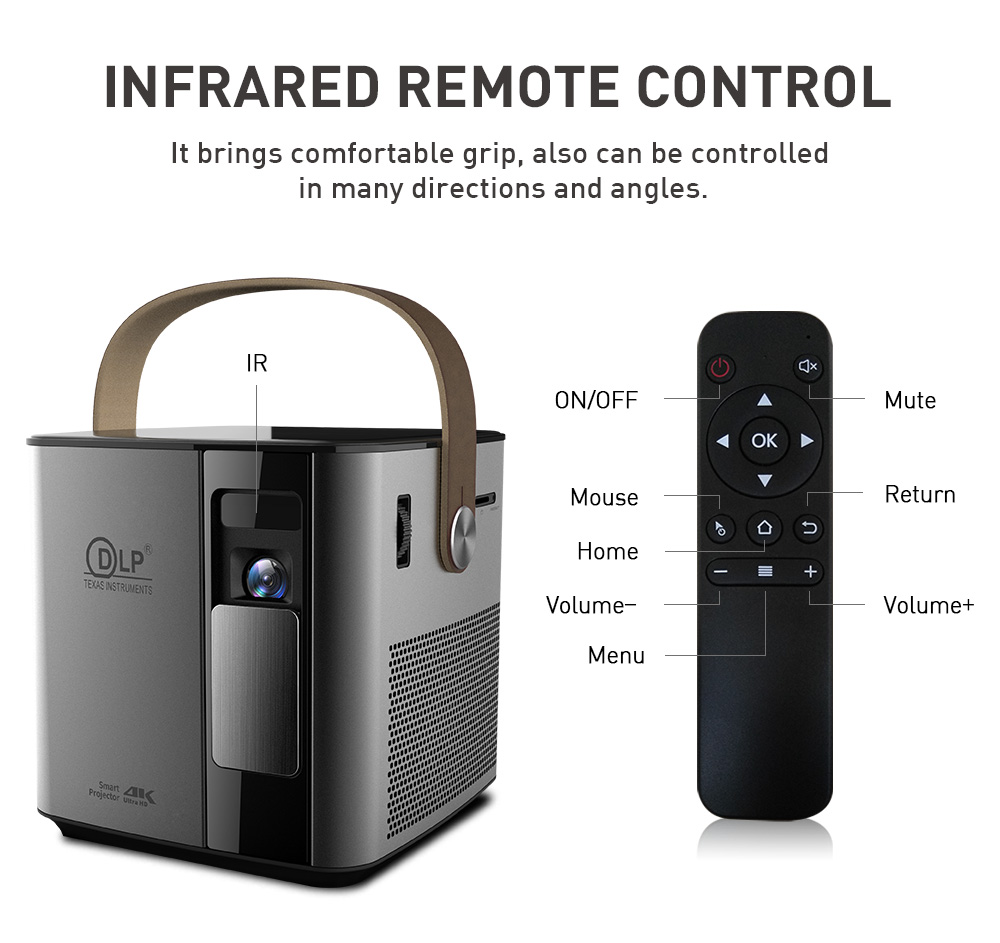

Remote Control :Support（IR) Infrared and 2.4G wireless control

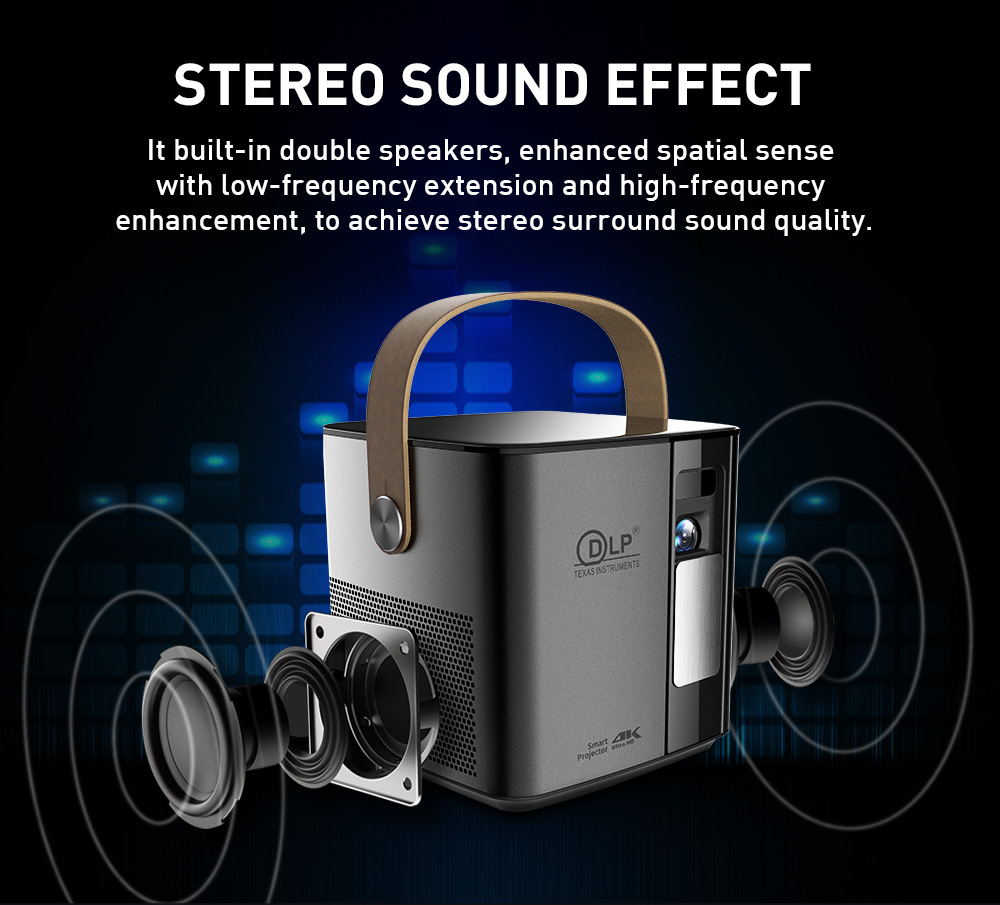

Built-in speaker :two 2w speaker
Light machine Consumption: 13W
Whole Power Consumption: 21W
Power Performance:AC100-240V,50/60Hz， DC 12V 4A

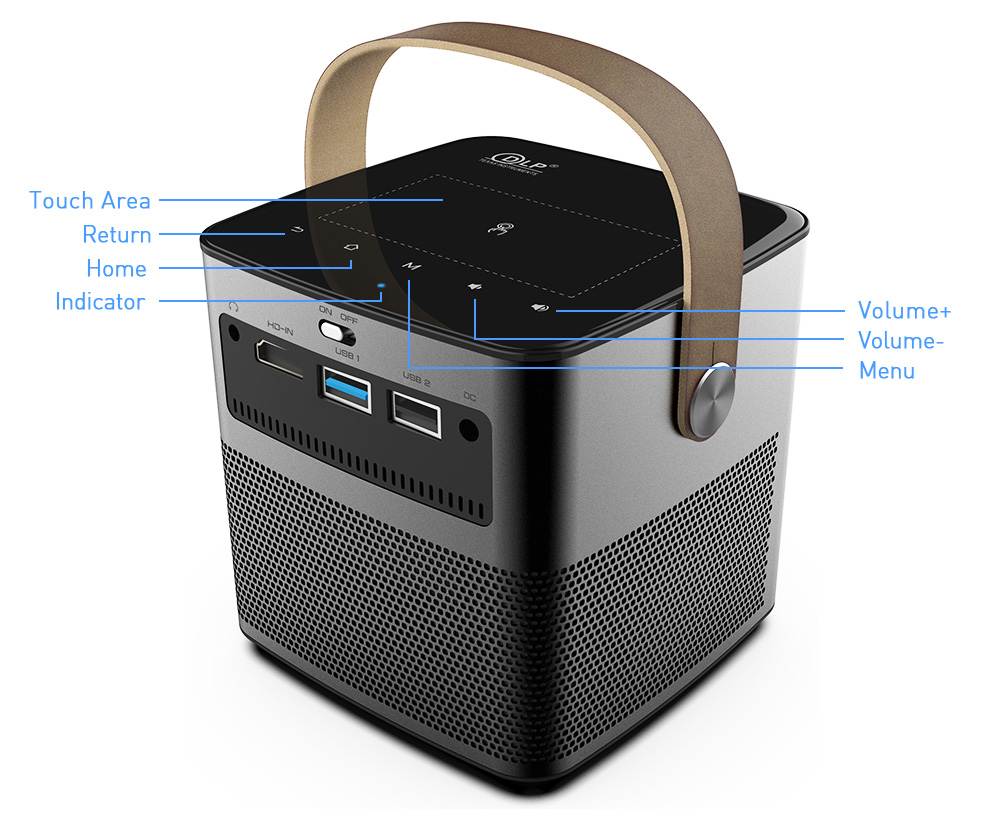

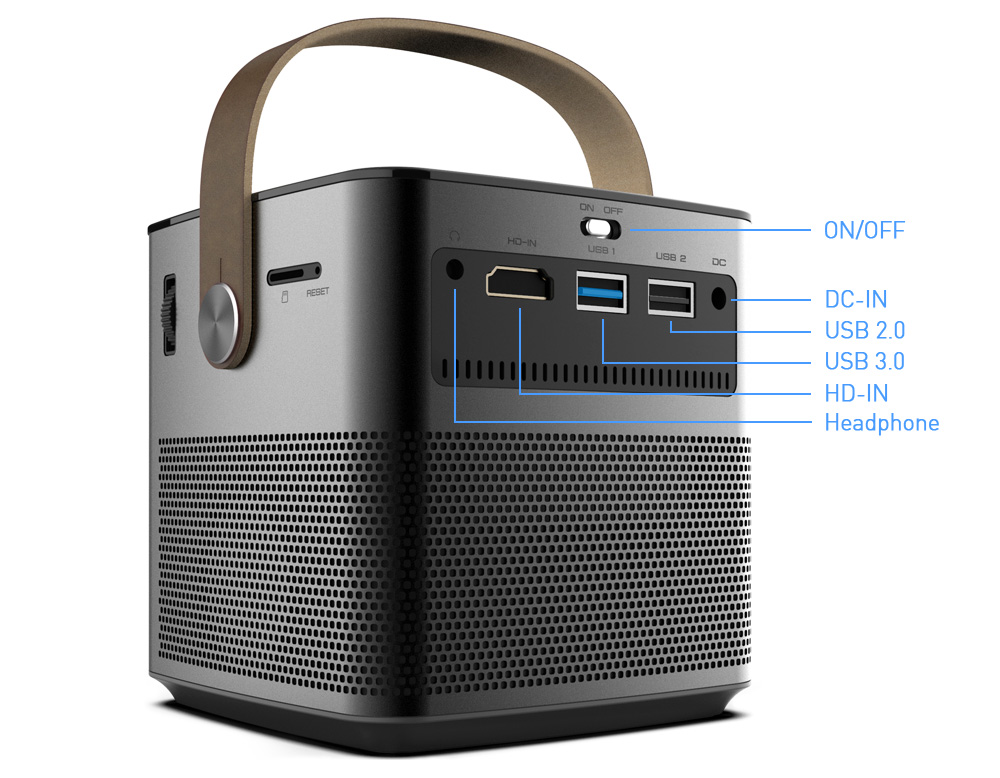

Interface
1*TF Card: Max 32G
1*HDMI: HDMI Input
1*USB: USB 3.0 Support USB hard disk data read
1*USB: USB 2.0 OTG
1*Earphone：Audio output, 3.5mm joint (can connect with earphone or speaker box)

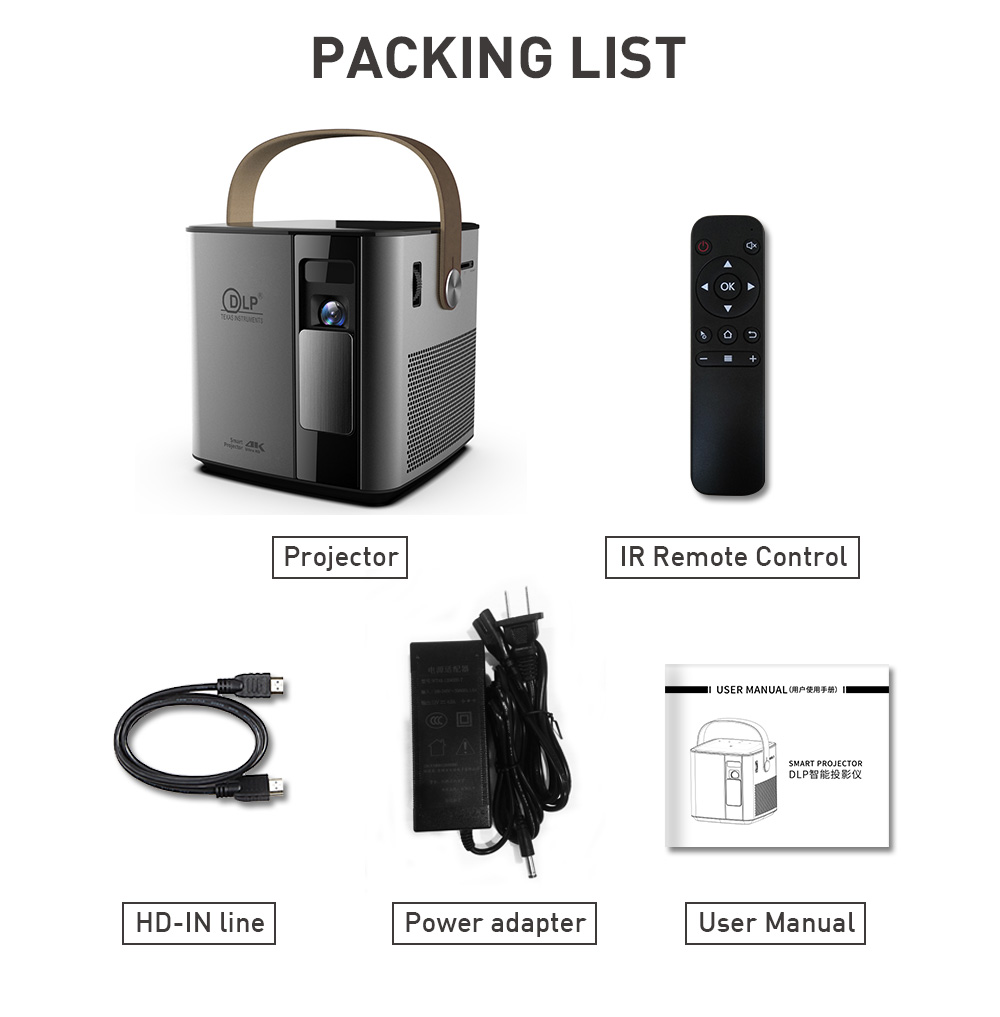

Package
Dimension 111*104*106mm
Net weight 632g
Gift Box weight 1400g
Gift Box Size 210*145*110mm
Picture Show
